New from GHL – The Mitras Lightbar 2

0

588f7575-1803-466c-8cbf-e00f3a4412b8

GHL, the makers of the Profilux aquarium controller, dosing pumps and Mitras LED lights releases the Lightbar 2 with a pre-order special*.

GHL’s Ultra-Bright High-Power LED Lightbar 2 is made in Germany and offers many features not included in other LED strip lights, especially when it’s linked to GHL’s Profilux aquarium controller.  The new Lightbar 2 boasts maximum output power with it’s GHL Power Balancing Technology® and super smooth Perfect Dimming Technology®.

*Pre-order special – To celebrate this new release, GHL is offering the first 500 customers a 15% discount!

Special LED Overheat Protection

Microprocessor_400x224

LEDs are protected by monitoring the operating states of the LED diodes while monitoring the lightbar temperature. The microprocessor-controlled automatic brightness reduction and powerful heat sink work together to provide efficient and safe operation with maximum light output.

FEATURES:

  • Homogeneous, brilliant and very bright light achieved  through a balanced mix of selected high-power LEDs in natural colors (CRI> 95, white LEDs 150 lm/W)
  • Super-smooth dimming with GHL Perfect Dimming Techology®
  • 120° Uniforml wide light distribution
  • Energy efficiency and long life through sophisticated thermal management (at least 60,000 operating hours)
  • When used with the GHL ProfiLux Aquarium Controller the Lightbar 2 becomes a fully controllable LED fixture with light dimming and color blending functionality
  • Water-temperature-dependent downward temperature control (light is dimmed if water gets too warm).
  • Full undimmed Light power when operated without the ProfiLux Controller (all LEDs light up to 100%)
  • Energy saving of approx. 50% compared to traditional LED lighting
  • 24V Operation

Avaliable Mitras Lightbar lengths

Model 40 50 60 70 80 90 100 110 120 130 140 150 160
Recom. for tank length [cm] 39-50 49-60 59-70 69-80 79-90 89-100 99-110 109-120 119-130 129-140 139-150 149-160 159-170
Max. power draw undimmed [W] 23,5 30,0 36,5 43,0 50,0 56,5 63,0 70,0 77,0 84,0 90,5 98,5 105,5
The Lightbar 2 is available in 13 different lengths and 4 distinct color configurations and is suitable for almost any marine or freshwater aquarium.  The LED spectrums range from 380-700 nm.
  • Mitras LB Daylight (Freshwater with many plants)
  • Mitras LB Ocean Blue (Freshwater and Salt Water)
  • Mitras LB Actinic (Saltwater upper to medium reef)
  • Mitras LB Deep Actinic (Saltwater medium to deep reef)



Each model is equipped with special LED combinations suitable for various applications such as Freshwater, upper, medium and deep reef lighting.  Multiple lights and color types can be used together and connected to a Profilux controller.

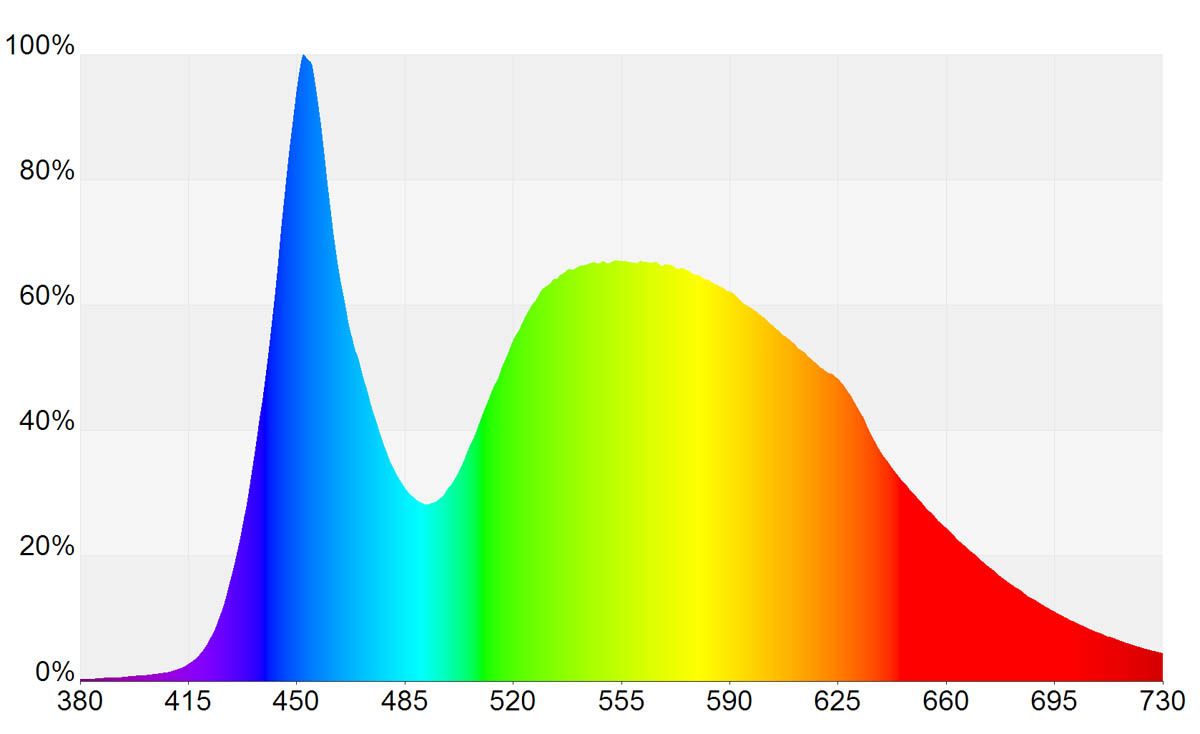

Mitras Lightbar Daylight

h

Lightbar Mitras Daylight at 100% Power

Recommended for Freshwater with many plants

Mid color temperature: 5500 K

5 Color Channels (dimmable via ProfiLux)

LED Configuration per 10 cm Lightbar:

  • 2x 6500 K
  • 2x 4500 K
  • 4x Cree CLX6D, red 622 nm, green 530 nm and blue 472 nm
  • White LEDs with 150 lm/W

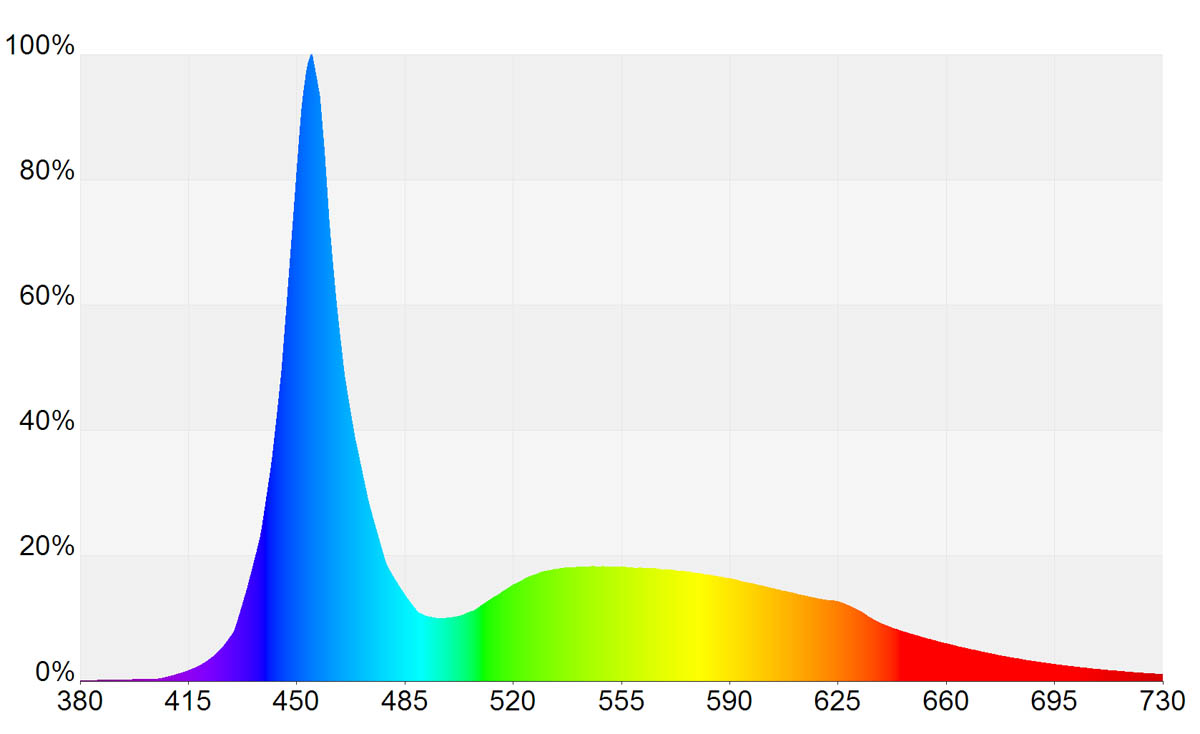

Mitras Lightbar Ocean Blue

h

Lightbar Mitras Ocean Blue at 100% Power

Recommended for Freshwater and Saltwater

Mid color temperature: 9000 K

7 Color Channels (dimmable via ProfiLux)

LED-Configuration per 10 cm Lightbar:

  • 1x Royal blue 455 nm
  • 1x 8000 K
  • 1x 6500 K
  • 1x 4500 K
  • 4x Cree CLX6D, red 622 nm, green 530 nm and blue 472 nm
  • White LEDs with 150 lm/W

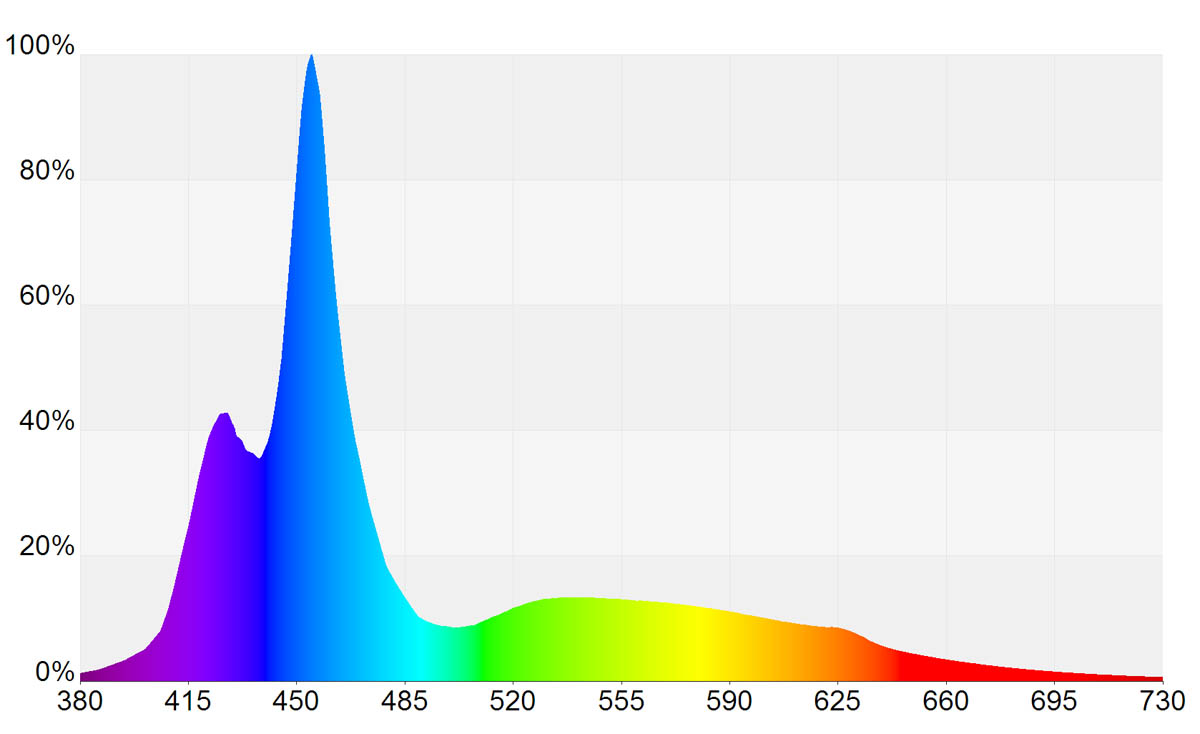

Mitras Lightbar Actinic

h

Lightbar Mitras Actinic at 100% Power

Recommended for Saltwater

Mid color temperature: 14000 K

7 Color Channels (dimmable via ProfiLux)

LED-Configuration per 10 cm Lightbar:

  • 1x Hyperviolett 425 nm
  • 1x Royal blue 455 nm
  • 1x 8000 K
  • 1x 6500 K
  • 4x Cree CLX6D, red 622 nm, green 530 nm and blue 472 nm
  • White LEDs with 150 lm/W

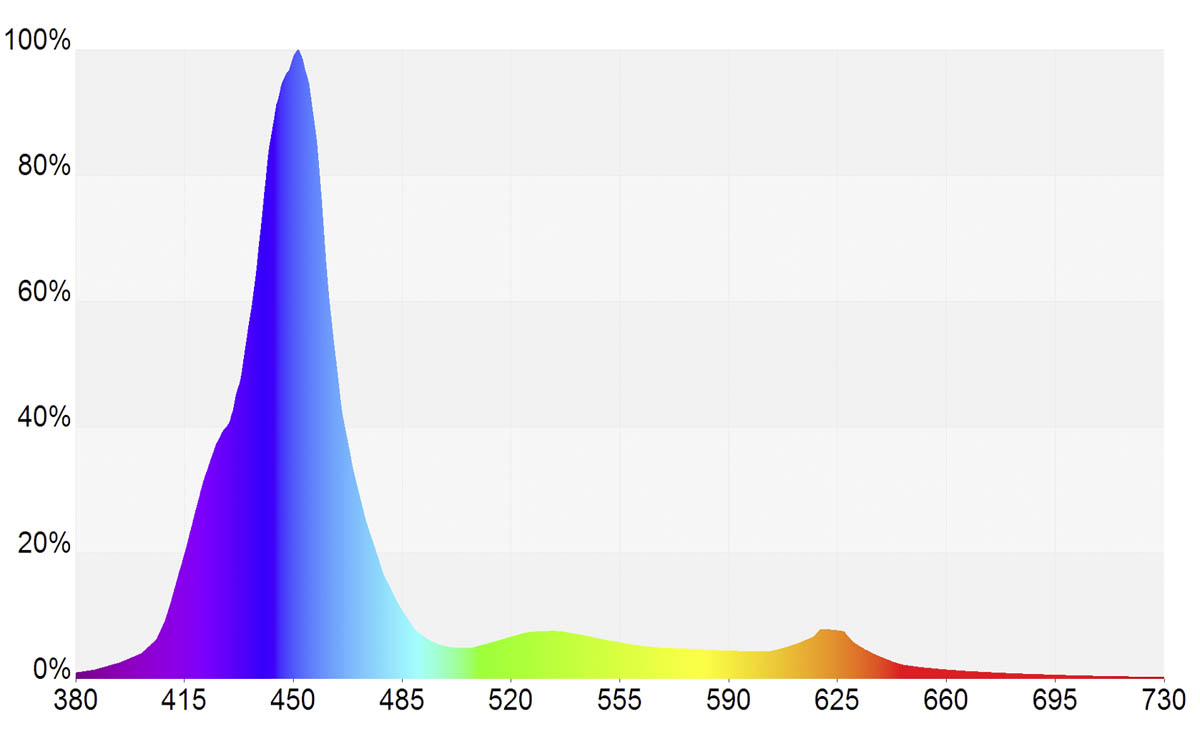

Mitras Lightbar Deep Actinic

h

Lightbar Mitras Deep Actinic at 100% Power

Recommended for Saltwater

Mid color temperature: 18500 K

7 Color Channels (dimmable via ProfiLux)

LED-Configuration per 10 cm Lightbar:

  • 1x Hyperviolett 425 nm
  • 1x Royal blue 455 nm
  • 1x 8000 K
  • 1x Deep blue 450 nm
  • 4x Cree CLX6D, red 622 nm, green 530 nm und blue 472 nm
  • White LEDs with 150 lm/W
